Desiknio

Desiknio Pinion Urban

42495090

The first eBike in the world with a combination of integrated battery and Pinion gearbox. A premium class bike engineered to be stylish. It has an integrated eBike System, handcrafted frame, CNC sliding dropouts, tapered head tube, integrated charging connector, carbon fork and hand-built wheels.

Clear
SKU: DSK-022-XXXXX-XXX, DSK-021-XXXXX-XXX-1 Categories: , , , Tag:
Model Year: 2021, 2022
Description

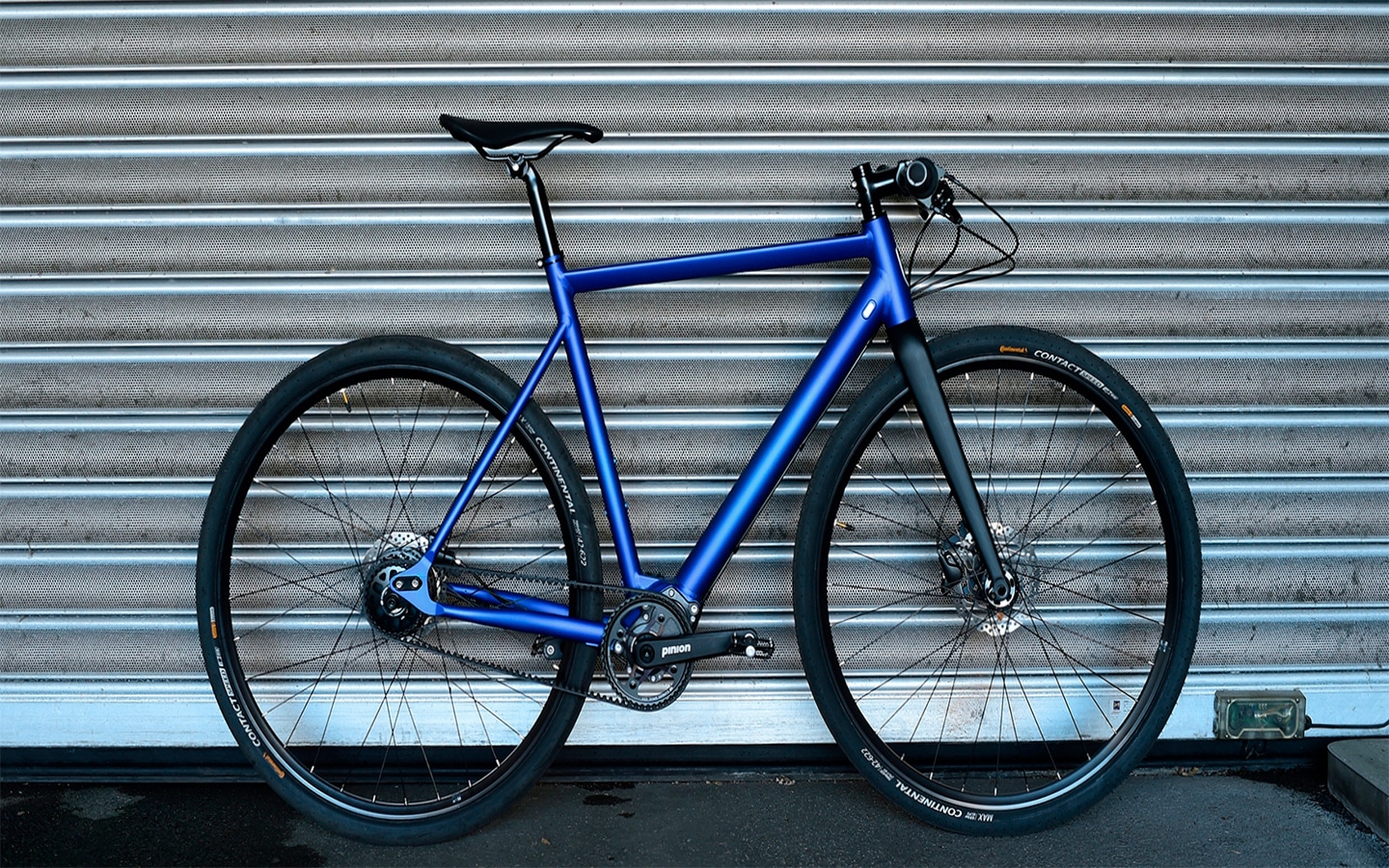

Desiknio Pinion Urban

The first eBike in the world with a combination of integrated battery and Pinion gearbox. Desiknio Pinion Urban is a premium class bike engineered to be stylish. It has an integrated eBike System, handcrafted frame, CNC sliding dropouts, tapered head tube, integrated charging connector, carbon fork and hand-built wheels. Read more about Desiknio.

  • Integrated battery
  • Pinion C1.6 / C1.9 Gearbox with Gates Belt Drive
  • Carbon Fork
  • Fabric Silicone Lock-on Grips
  • Fabric Scoop Shallow Elite Sadle
  • Black Anodized Aluminium Parts
  • Designed, Engineered and Handcrafted in Spain
  • Up to 80 Km of Range
  • Powerful Rear Hub Motor

Desiknio Pinion Urban Tourer

An urban & tourer eBike equipped with all you need for your daily commuting and beyond.

A Pinion Urban equipped with:

  • Stronglight Black Anodized Fenders
  • Tubus Fly Rack
  • Supernova V521s Front Light
  • Supernova E3 Tail Light

Patent

Desiknio’s combination of fully integrated, lightweight eBike system and central gearbox, has a Patent granted for Desiknio by the Spanish Patent and Trademark Office (SPTO), with scope of application for the European member states party to the European Patent Convention.

Less is more

IWOC® ONE
Bluetooth® Communication and full e-bike control in only one button
Ebikemotion® APP for Smartphone and Smartwatch
Speed, battery capacity, range, power
Navigation, GPS Tracker and much more

Desiknio Commuter Tourer Product 5

High power 250 W/h battery
*up to 500Wh with the optional Water Bottle Battery
Protected against water, vibrations and crashes
Lower gravity center
Easily removable from the bottom bracket

The Carbon Belt Drive is completely clean and quiet. No oil lubrication required.
The electric motor power goes straightaway to the rear wheel, the human power to the drivetrain for the smoothest solution possible.

Every bike component has been carefully selected to guarantee the highest quality, such as Brooks genuine leather saddle & grips, Ritchey polished aluminum parts, Shimano classic hydraulic brakes, DT Swiss rims.
Every bike takes approximately 50 hours to assemble from the first frame construction steps to the final components.

A large selection of special colors
Choose your own color from a selection of quality powder coated paint, metallic finishing, matte or glossy colors.

Desiknio Pinion Urban

FRAME6061 Aluminum – T6 Heat Treated, CNC Parts, Custom Shaped Tubes, Internal Hose Routing, Handcrafted TIG Double Smooth Welding, Polished by Hand
FORKMonocoque Full Carbon Fiber, Carbon 1.5′ Tapered Steerer Tube, Internal Hose Routing, 15 mm Thru Axle, Fender and Light Mounts
DRIVETRAINGates Carbon Drive™ CDX, 118T Belt | 46T Front sprocket | 30T Rear sprocket
GEARSPinion C1.6 Gearbox
*C1.9 XR Optional
BRAKESShimano M315 Hydraulic Brakes 160 mm Shimano Front Rotor | 160 mm Shimano Rear Rotor
PEDALSCNC Aluminum, Black Anodized
HANDLEBARDesiknio Urban Black Anodized Aluminium
SEAT POSTDesiknio Urban Black Anodized Aluminium
GRIPSFabric Silicone Lock-on
SADDLEFabric Scoop Shallow Elite
MOTOR TYPEEBM® M1 Hub Motor, Geared and Freewheel
MOTOR POWER250 W (nominal), 400W (maximum)
MOTOR TORQUE40 Nm
BATTERY TYPEEBM® Inner Battery, Pannasonic 18650GA – 10S/2P, CAN BUS
BATTERY CAPACITY250 Wh *up to 500Wh with the optional Water Bottle Battery
7 Ah *up to 14Ah
BATTERY VOLTAGE36 V
CHARGING TIME2 – 3 hours
MIN RANGE (high power / hilly terrain)< 50 Km
MAX RANGE (low power / flat terrain)> 100 Km
MAX SPEED (assisted power)25 Km/h
WEIGHT13.5 kg

Frame Geometry

Size S/MSize M/L
1Top Tube (horizontal) 559 580
2Reach385400
3Head Tube Length135135
4Head Tube Angle72,5º72,5º
5Fork Length431431
6Fork Offset4949
7Stack570590
8BB Drop3565
9BB to Front Hub608620
10Wheelbase10361042
11Chain Stay Length430430
12Seat Tube Length520560
13Seat Tube Angle73º73º

Sizes

Desiknio Size Guide L
L SizeMinMax
Recommended height180 cm195 cm
Saddle height (from bottom bracket)615 mm800 mm
Handlebar distance
(from saddle)
685 mm (90 mm stem)705 mm (110 mm stem)
Top tube height810 mm-
Handlebar width-660 mm
Desiknio Size Guide M
M SizeMinMax
Recommended height165 cm185 cm
Saddle height (from bottom bracket)595 mm780 mm
Handlebar distance
(from saddle)
640 mm (70 mm stem)660 mm (90 mm stem)
Top tube height790 mm-
Handlebar width-660 mm
Additional information
Model

Pinion Urban, Pinion Urban Tourer

Model Year

2021, 2022

Gear

Pinion C1.12, Pinion C1.6, Pinion C1.9 XR

Size

L, M, S

Color

Granad Red, Indigo Blue, Magic Black

Brand

Desiknio
