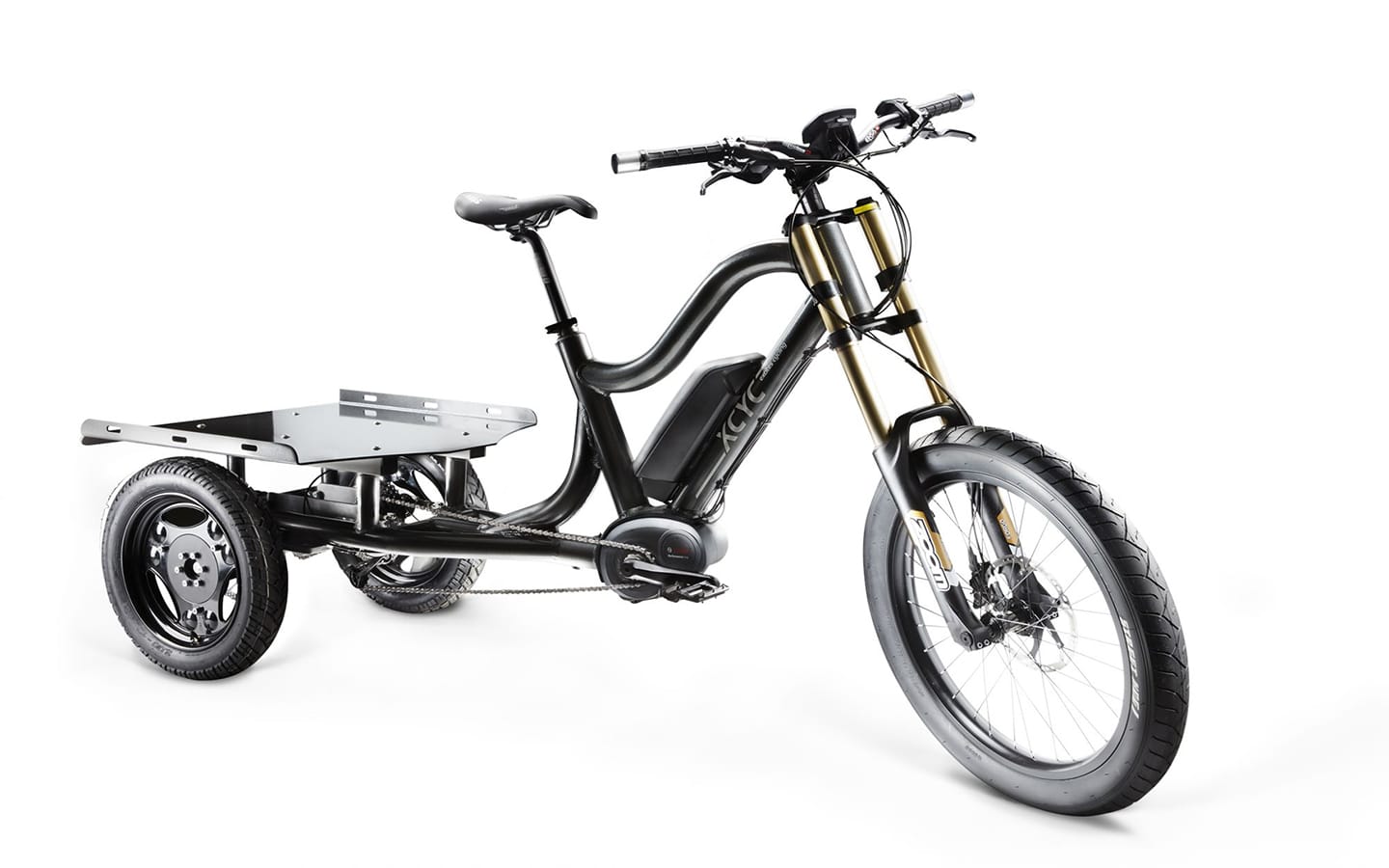

XCYC Pickup Work
For everyone with big plans. With the XCYC Pickup Work, you’ll easily master life’s daily challenges. The modular loading area and high load capacity turn this vehicle into a reliable partner for every work assignment.
Design – Manufacturing – Made in Germany
The XCYC bikes are loadable to up to 250 kg and, with an electric drive, particularly well-suited as a means of transport and a sporty carrier bicycle for numerous fields of application, such as:
› Healthcare facilities
› Delivery and courier services › Gastronomy
› Trade
› Tourism
› Industrial companies
› Marketing and promotion
› Leisure time
Technical details
- Narrow rear wheels (12 inch)
- Large loading area
- Bosch Intuvia display
- Double crown suspension fork
- Extended wheel-base
- Standard paint finish black matt
Optional
- Dropper seatpost
- Registration in accordance with the road traffic act
(German road traffic registration ordinance) - Premium double crown suspension fork
- Paintwork in colour of choice
XCYC Pickup Work
| Basic Parts | |
| PICKUP ALU-S-FRAME | Standard |
| SHORT WHEELBASE (1410 mm) | Not available |
| LONG WHEELBASE (1520 mm) | Standard |
| GEARSHIFT: Shimano Deore 9 Speed | Standard |
| GEARSTICK: Shimano Deore 9 Speed | Standard |
| BIKE CHAIN: Shimano E-Bike Kette 9 Speed | Standard |
| BREAK (FRONT): Shimano Deore break disk 203 mm | Standard |
| BREAK (BACK) Shimano Deore break disk 180mm | Standard |
| HANDBRAKE | Standard |
| ENGINE: Bosch Performance CX, 250 W, 75 Nm, 25 km/h | Standard |
| DISPLAY: Bosch Intuvia | Standard |
| BATTERY: Bosch Power Pack, 500 Wh | Standard |
| CHARGER: Bosch charger 4A | Standard |
| SADDLE: SMP, Selle TRK | Standard |
| PEDAL: XLC pedal | Standard |
| HANDLEBAR: Ergotec Ergo Plus XL 630 mm | Standard |
| PORCH: Ergotec Swell Porch | Standard |
| FRAME COLOUR: Black (RAL 9005) Dull | Not available |
| FRAME COLOUR: Orange (RAL 2004) Dull | Standard |
| INDIVIDUEL BRANDING LOGO | Optional |
| Parts-packages | |
| Wheel-packages_R01: back wheels: narrow rear wheels (12 inch) front wheel: wheel 24 x 3,0 (24 inch), quick release axle 20mm fork: double crown suspension fork, zoom | Standard |
| Wheel-packages_R02: back wheels: narrow rear wheels (12 inch) front wheel: wheel 24 x 3,0 (24 inch), quick release axle 20mm fork: premium double crown suspension fork | Not available |
| Wheel-packages_R03: back wheels: wide rear wheels 165/70-10 (10 inch) front wheel: wheel 24 x 3,0 (24 inch), quick release axle 20mm fork: premium double crown suspension fork | Not available |
| StVZO-packages_ST01: STVZO-equipment: front light, back light, driving mirror, front reflector, back reflector | Optional |
| Sit-packages_SI01: stiff hook, Ergotec, 31,6 x 400 mm | Standard |
| Sit-packages_SI02: height-adjustable hook, "Up Down", Ergotec, 31,6 x 400 mm | Optional |
| PRICE | From €6,499 |
Bike Details
- Powerful electric drive
Bosch Performance Line CX, 250 W, 75 Nm, 25 km / h
- Rechargeable battery
Bosch Power Pack, 500 Wh incl. Bosch Fast Charger 4 A

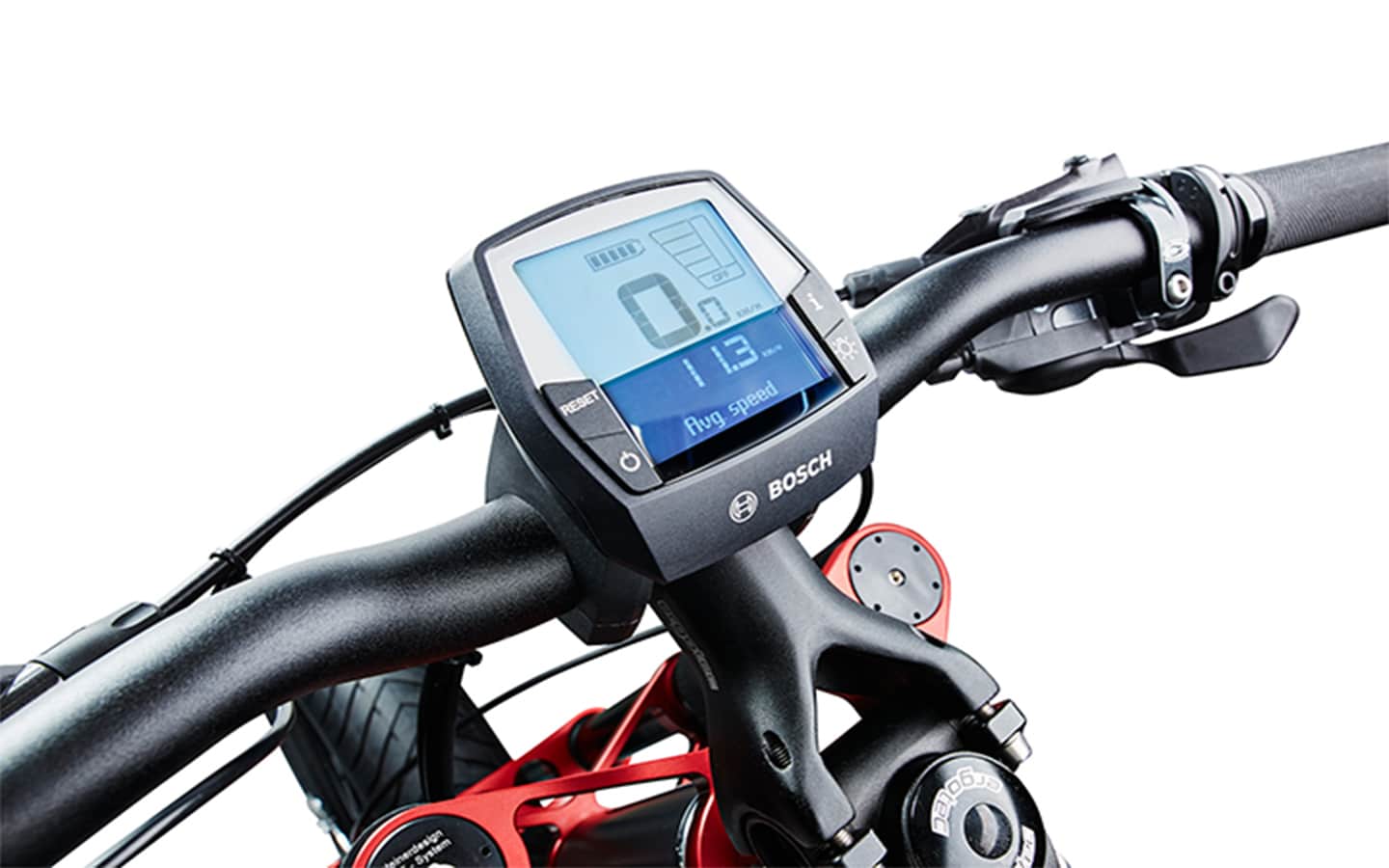

- Multifunctional display
Bosch Intuvia Display
- 9-gear shift
Shimano Deore 9 Speed
- Frame in pickup aluminum S-frame design
- Hydraulic disc brakes
Shimano Deore. 203 mm front
180 mm rear (double disc brake)
- XCYC parking brake
Practical XCYC parking brake on the handlebars

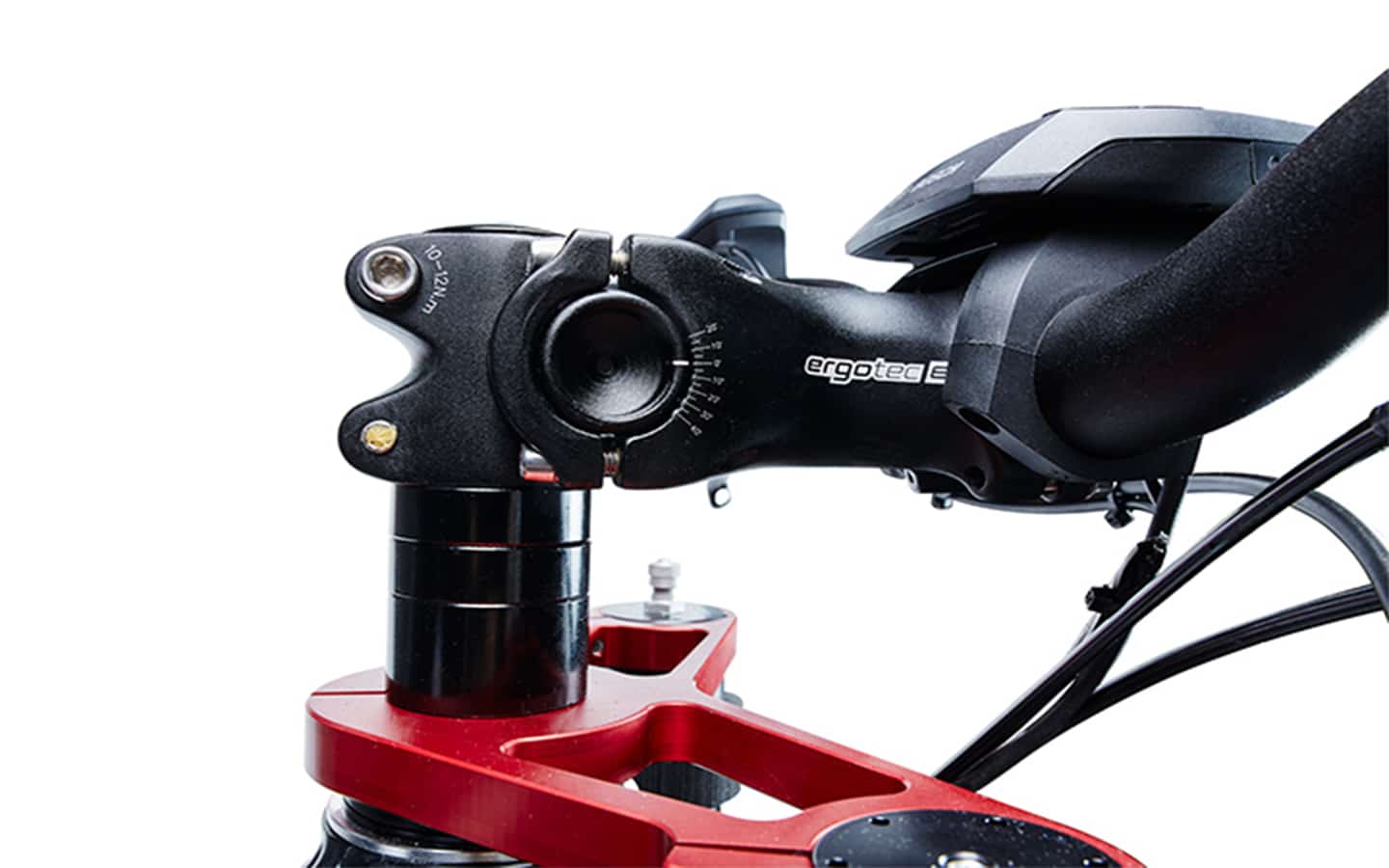

- Height-adjustable stem
Ergotec swell stem

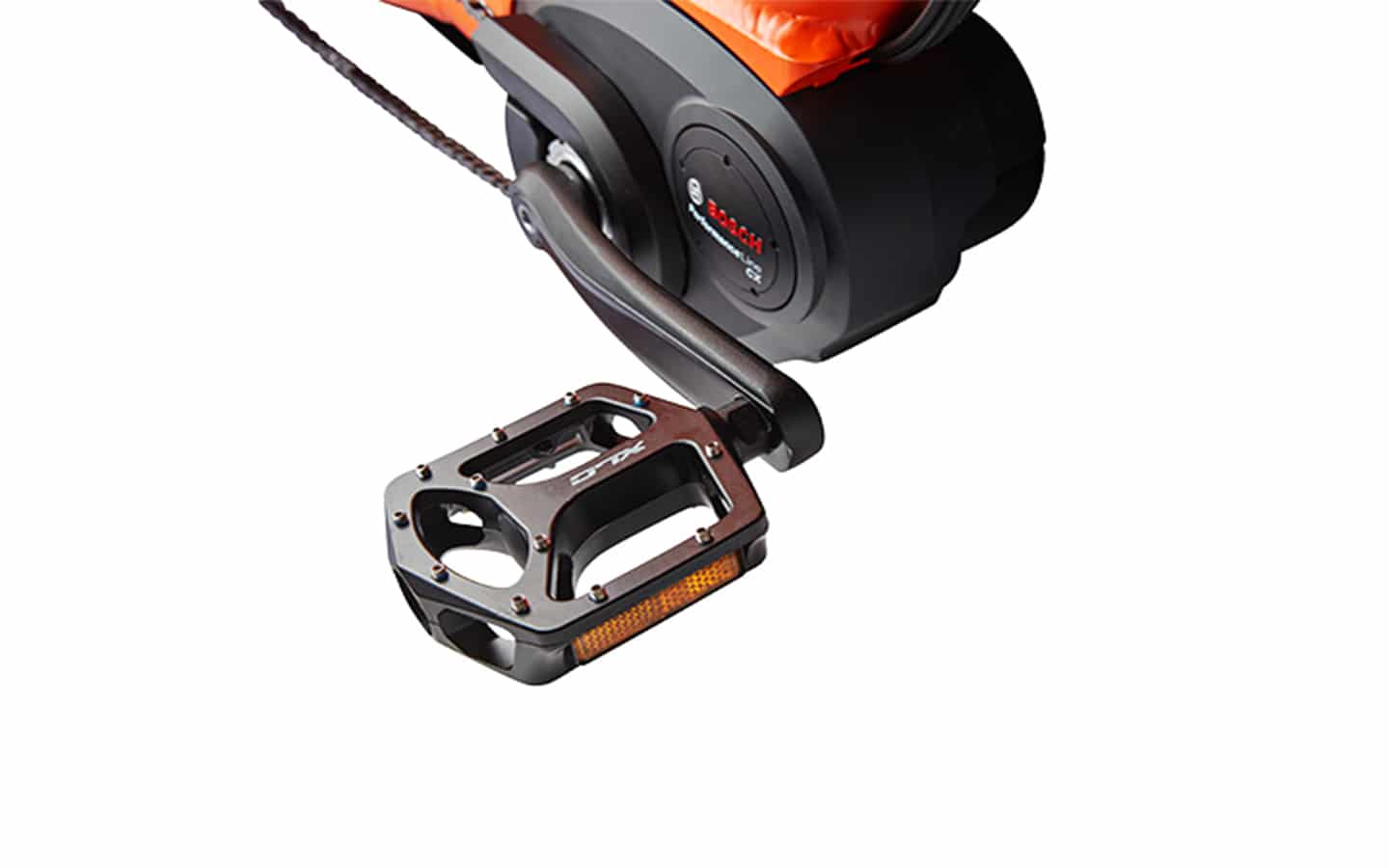

- Platform
XLC platform pedals
- Ergonomic handlebar
Ergotec Ergo Plus XL 630 mm
- Zoom double bridge spring fork

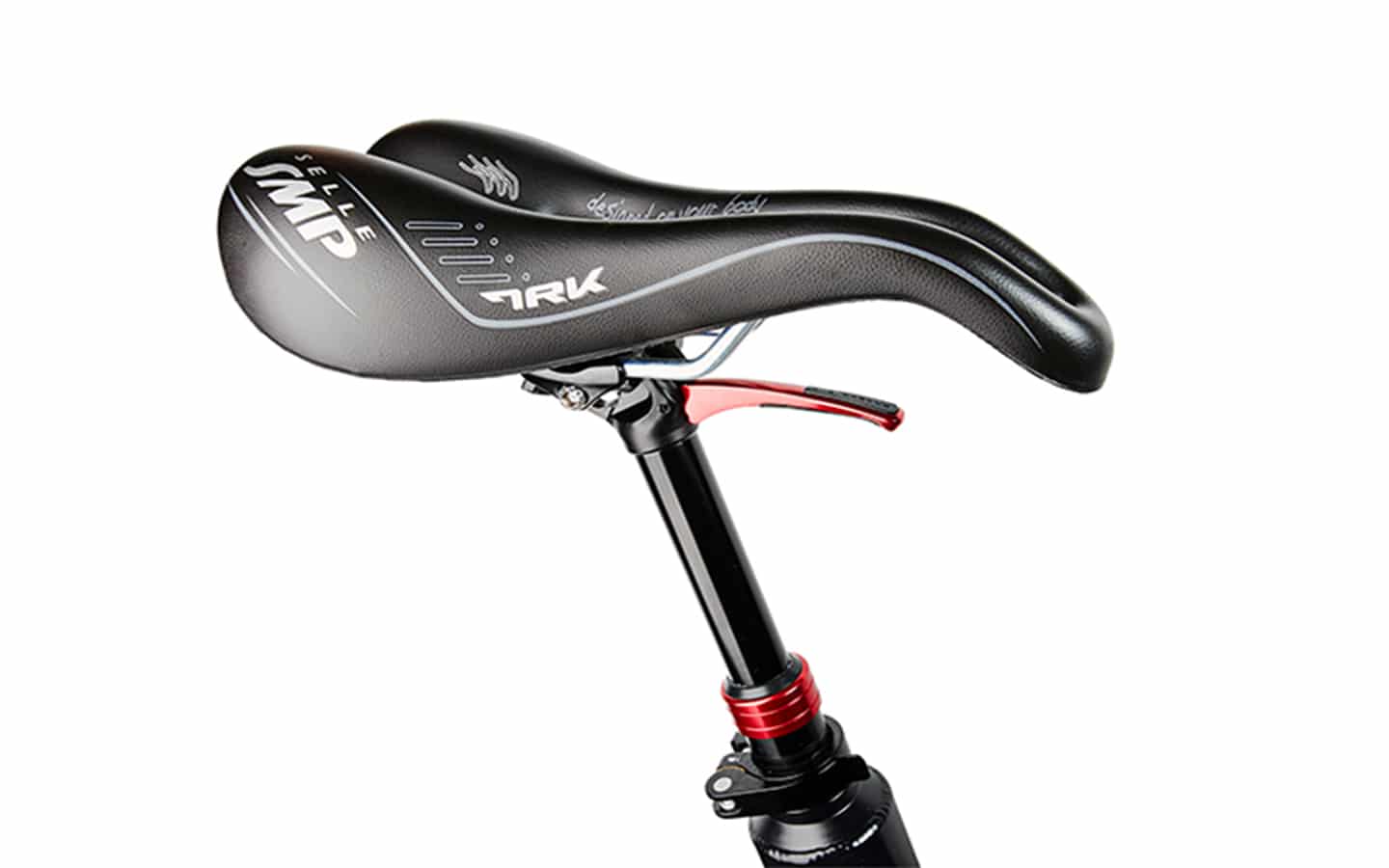

- Ergotec rigid seatpost “Hook”
Optional with height-adjustable seatpost “Up and Down”
by Ergotec 31.6 mm × 400 mm

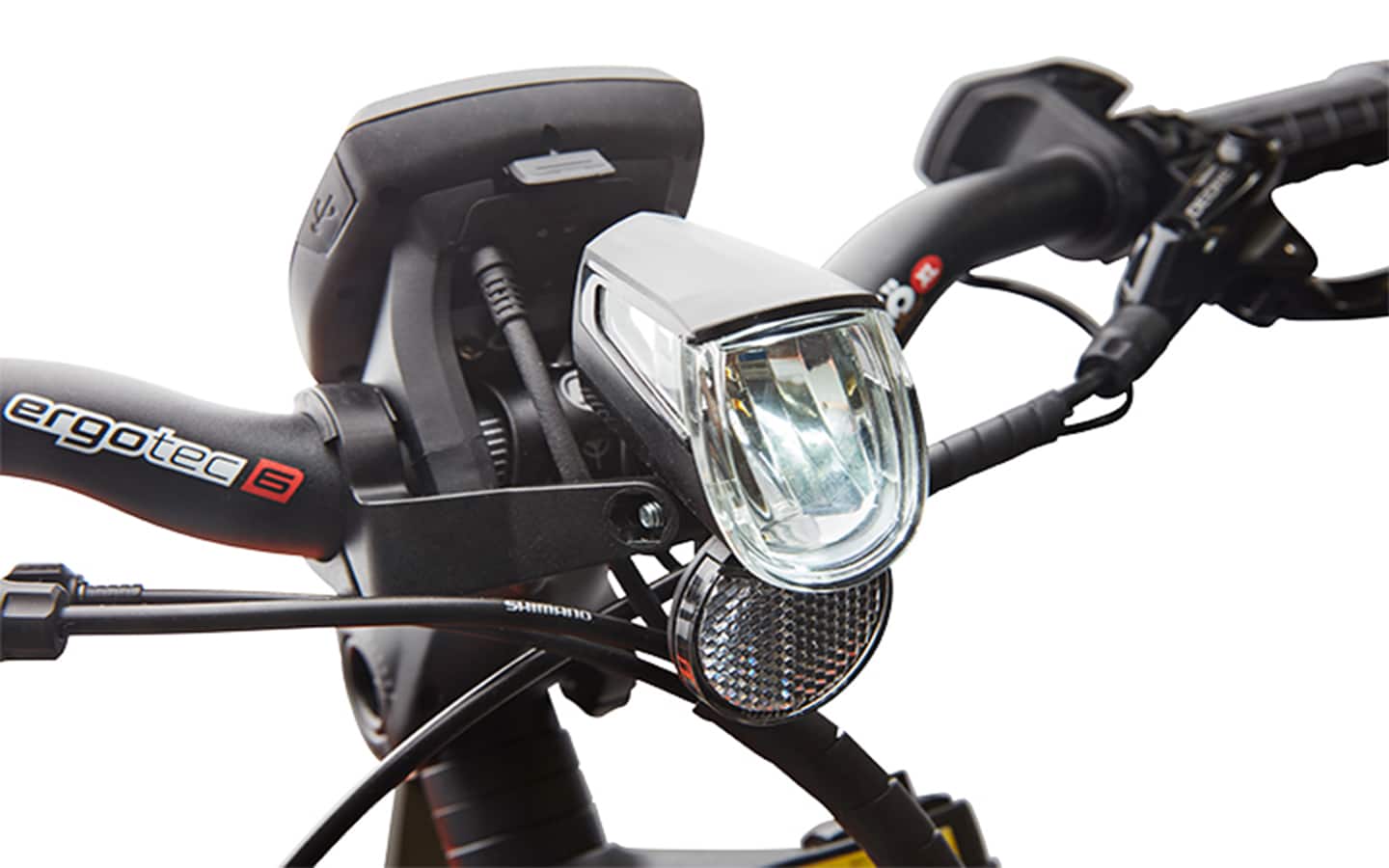

- Optional approval for road traffic
With front light, tail light, side lights, etc.
according to Road Traffic Licensing Regulations (StVZO)
- Length × Width × Height
210 × 70 × 115 cm - Weight
Weight empty – 58 kg
Permitted total weight – 250 kg - Large loading area
764 mm × 763 mm (length × width)
Extended wheelbase, 1500 mm - Front wheel 24 inches, 46 mm
Rear wheels 12 inches, 3.0-13
- Frame color (matt, powder coated)
Standard colors:
Performance: Black
Work and Allround: Pure Orange
Black (RAL 9005) Pure Orange (RAL 2004)
